Multiple Uses
ONE MACHINE
Alamo Mantis
Alamo Mantis
Multiple Uses
German-Bliss Equipment is your Illinois dealer of the Alamo Mantis and it's versatile attachments.

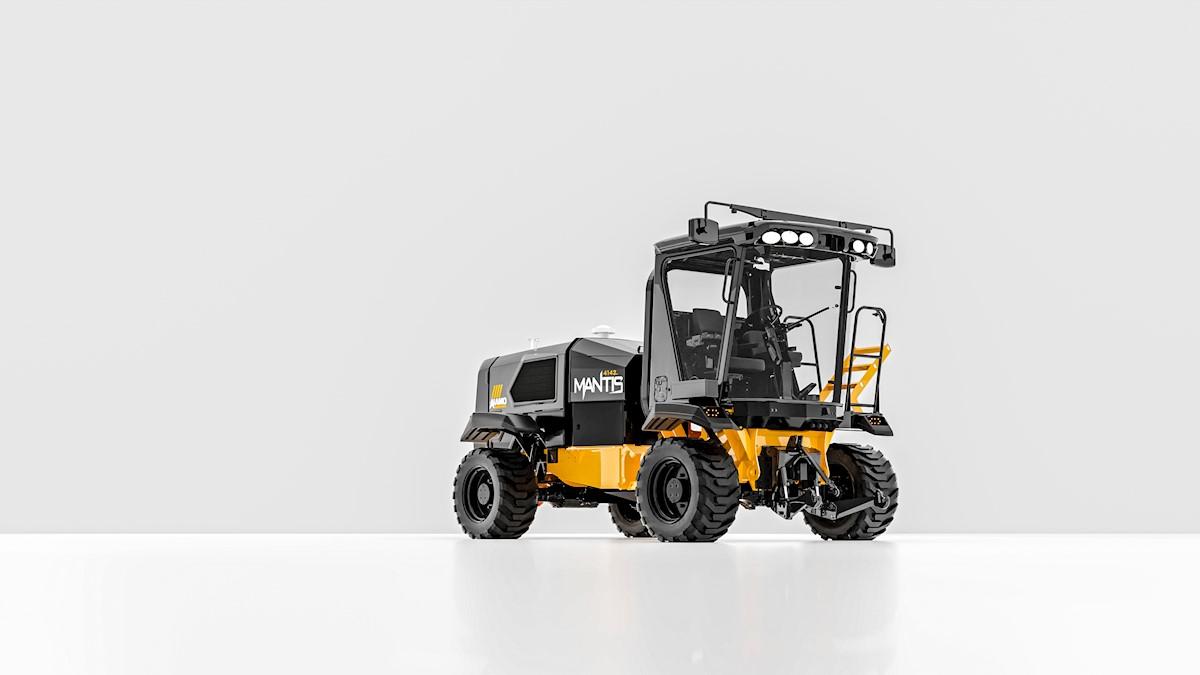

The Alamo Mantis 4142™ gives you a wide array of attachment possibilities with its’ quick change-out, mid-mounting features and front and rear universal hitches.
- 142 hp 410 lb-ft 4 cylinder Perkins Turbo Charged Tier 4 Diesel Engine
- Full-time 4-wheel drive
- Travel speed of 25 mph
- 14,000 lbs gross weight (without attachments)
- Optional front CAT II 3-point and rear draw bar can come with optional 60HP 540 RPM PTO
- 12 in - LCD monitor with real-time data feedback and a rear view camera
- High visual cab with air ride seat & HVAC system
- 22 ft & 30 ft boom arm options with 6+ head options
| DIMEMSIONS | |
|---|---|
| Width | 102 in |
| Length | 204 in |
| Wheelbase (without attachments) |
102 in |
| Height | 120 in (without attachments) |
| Weight | 21,000 lbs gross weight (without attachments) |
| Minimum ground clearance in transport | 10 in |
| OPTIONAL SCV’S AT THE REAR | |
|---|---|
| 2 rear SCV | |
| Optional draw bar/hitch | |
| Optional 540 RPM PTO |
| OPTIONAL SCV’S AT THE FRONT | |
|---|---|
| 2 front SCV | |
| Optional 540 RPM PTO | |
| Optional Zuidberg hitch |

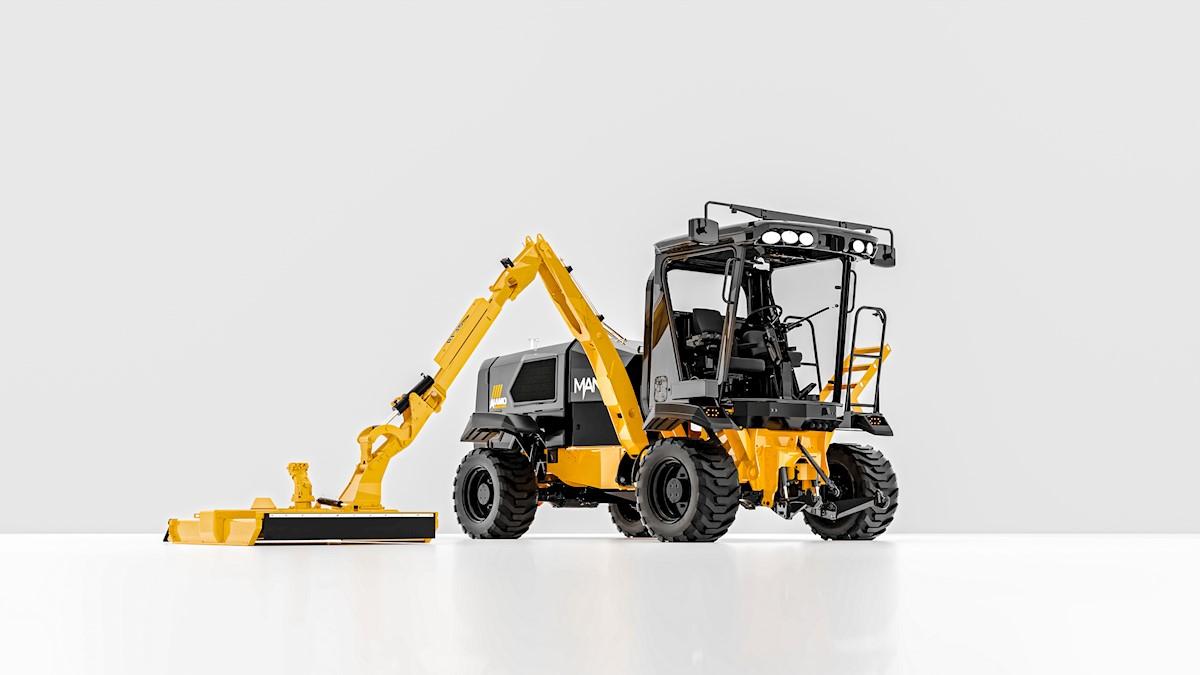

Maverick 2 Boom Mower
Maverick™ 2 boasts a substantially heavier built than anything on the market making it look more like a backhoe mounted on the side of the tractor. The Maverick™ 2 also runs cooler on a closed-loop piston pump and 180° front to back hydraulic swing utilizes a turret-style mechanism that allows the operator to mow closer to the tractor or even in front of the tractor.
| SPECIFICATIONS | |
|---|---|
| Boom Lengths | 24 ft, 28 ft ( Fixed Dipper), and 30 ft Models (3 ft. telescopic is included in full length) |
| Tractor Requirement | TIV-B Models: 110 engine HP, 101 in wheelbase, minimum of 10,800 lbs shipping weight. |
| Cutting Head Options | Severe Duty Rotary, Flail-Axe®, Heavy Duty Grass Flail, BuzzBar® |
| Joystick | Included |

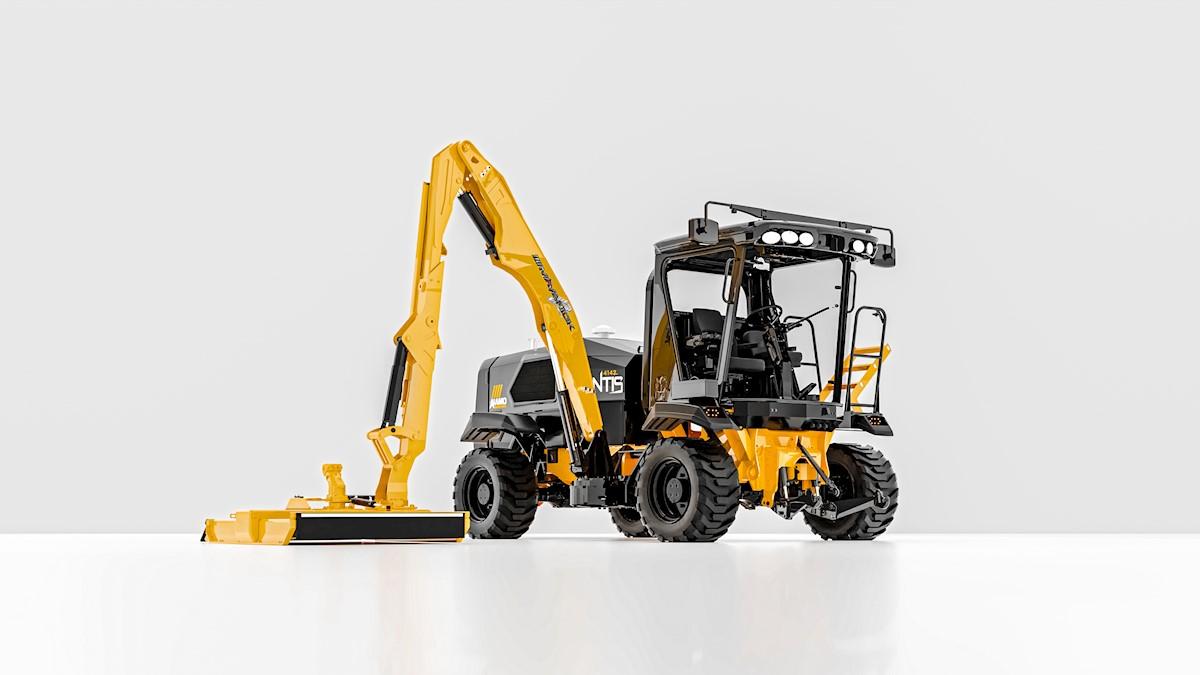

RF22/RF30 Boom Mower
The head options will be:
- 48 in Flail Head
- 60 in Rotary Head
- 3 Blade Saw Head
- Whalen light bar DOT spec
- Optional front and rear PTO’s with remote hydraulic options
- External mirrors and light mounting for both sides of the cab
- Front mower side shift function
- Front-mounted CAT II three-point hitch
- Rear tow hitch frame and hitch
- Attachment hydraulic quick disconnect package
RF22
- Boom reach 22 feet from the center of the machine to the edge of the cut.
- The boom will fold behind the cab for a transport envelope of 150 in H x 102 in W
- Seven boom functions of which three are proportional control.
- Protected boom hoses and lines.
- Hardened boom and dipper pins.
- Capable of mowing within 16 in of tires.
- Capable of mowing a 45-degree downward slope.
- A swing back breakaway feature will be incorporated in the boom design.
- Mowing head attachments are similar to the Maverick II head options.
- Quick attach head connection is standard
RF30
- Boom reach 30 feet from the center of the machine to the edge of the cut.
- The boom will fold behind the cab for a transport envelope of 150 in H x 102 in W
- Eight boom functions of which three are proportional control.
- Protected boom hoses and lines.
- Hardened boom and dipper pins.
- Capable of mowing within 16 in of tires.
- Capable of mowing a 45-degree downward slope.
- A swing back breakaway feature will be incorporated in the boom design.

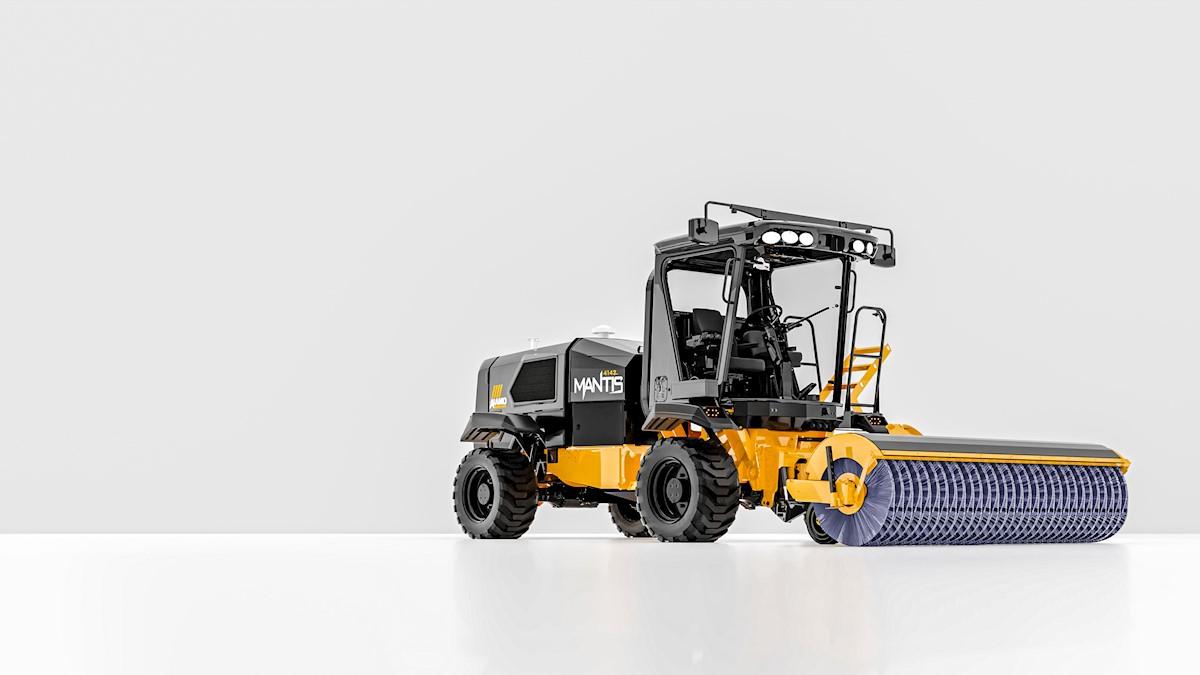

Plowpal Broom
Plowpal™ broom is now available for the Mantis 4142™
- Tool-less Ratcheting Broom Pattern Adjustment.
- Dual Motor Hydraulic Drive housed inside brush core.
- 35 Degree Right/Left Angle – hydraulic or manual.
- Extra Heavy-Duty Tubular Steel welded broom frame.
- 13 in Diameter Caster Wheels with rotating height adj. casters.
- Broom Head Floats with side to side oscillation.
- Polyethylene Broom Hood supported by the welded frame.
- Free Flow Check Valve to protect the hydraulic circuit.
- Compatible with 20 to 50 gal/min. Hydraulic Circuits.
- Adjustable Parking Stands included.

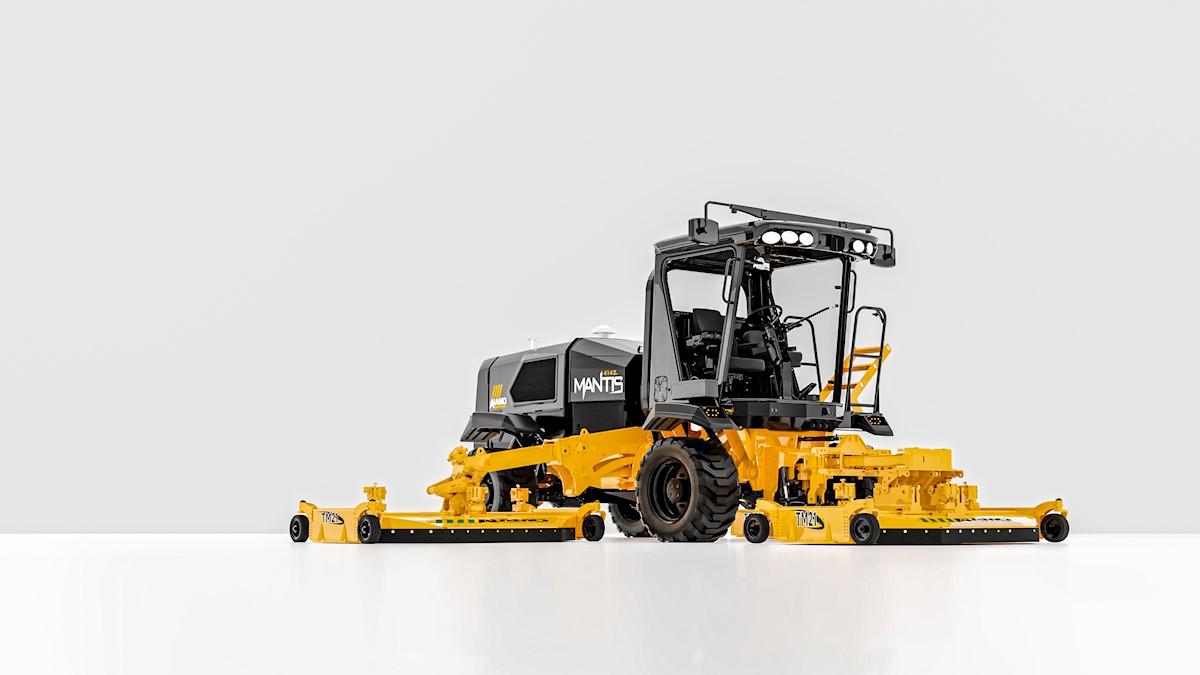

Rotary WAM
Rotary WAM (Wide Area Mower) is now available for the Mantis 4142™
- The mower wings will fold behind the cab for a transport envelope of 150 in H x 102 in W
- The mowing heights are adjustable between 1.5 in – 8 in
- The mower decks are a ‘clean deck’ style
- Hydraulic float functions allow the mowers to follow the ground elevations
- Head floatation capability of up to 15 degrees perpendicular to the ground plane
- The deck material should be of 10 Ga. (flail) and 7 Ga. (rotary) materials
- Replaceable skid shoes will be standard

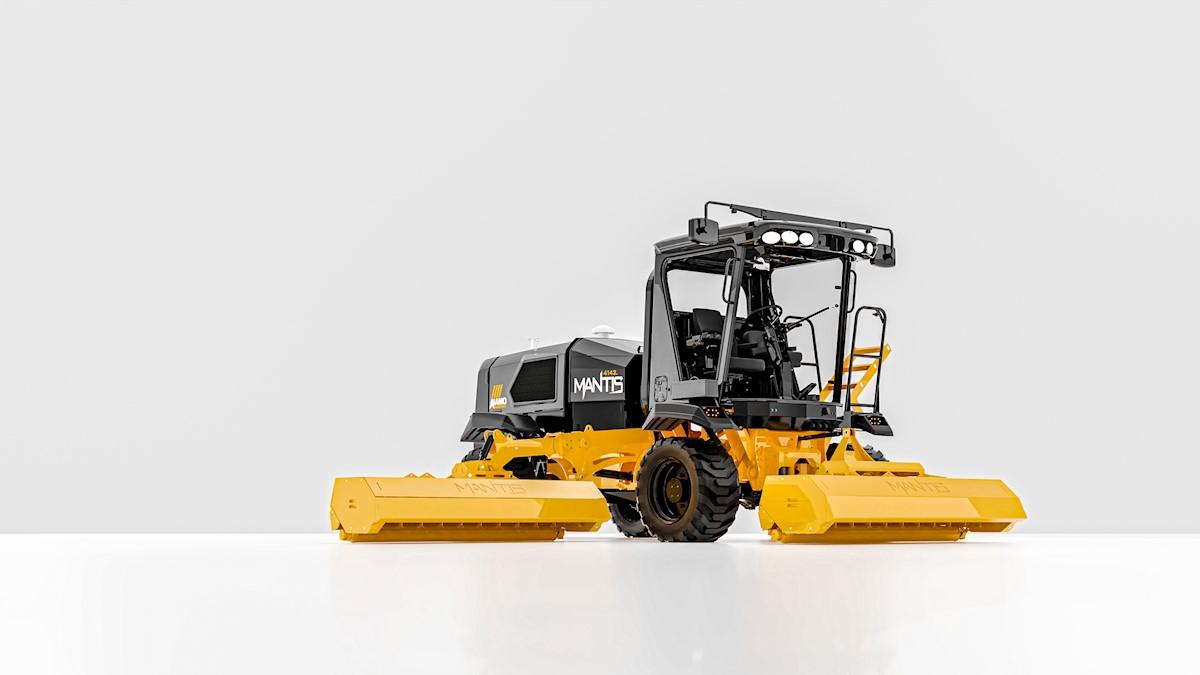

Flail WAM
Flail WAM (Wide Area Mower) is now available for the Mantis 4142™
- The mower wings will fold behind the cab for a transport envelope of 150 in H x 102 in W
- The mowing heights are adjustable between 1.5 in – 8 in
- The mower decks are a ‘clean deck’ style
- Hydraulic float functions allow the mowers to follow the ground elevations
- Head floatation capability of up to 15 degrees perpendicular to the ground plane
- The deck material should be of 10 Ga. (flail) and 7 Ga. (rotary) materials
- Replaceable skid shoes will be standard
